Foundry Sand Horizontal Parting Off-box Flaskless Molding machine

Foundry Sand Horizontal Parting Off-box Flaskless Molding machine

  • Easy to change templates, hydraulic oil temperature control to guarantee optimum level of equipment; easy to operate, double safety guard, humanized design program
  • Can be used for the production of grey iron, nodular iron, malleable iron, steel, aluminum
  • Improved productivity and quality
  • Less Manpower Required
  • Can be designed as per available space
  • Description
  • Additional Information
  • Inquiry

Technical Parameters of Foundry sand flaskless molding machine

Item/Model
HZ613
HZ615
HZ616
HZ617
LxW
450x350mm
600x500mm
650x650mm
700*600
Upper & Lower Boxes Height
110-150mm
110-220mm
125-250mm
125-250mm
Capcity
220 molds/h
200molds/h
180molds/h
180molds/h
Air consumption
0.3 m3/mold
0.45m3/mold
0.65 m3/mold
0.65 m3/mold
Power
22 kw
38 kw
42kw
45KW
Compressed air pressure
0.5-0.65Mpa
0.5-0.65Mpa
0.5-0.65Mpa
0.5-0.65Mpa

We manufacture and design full scope of green sand casting equipment. including Green Sand Mixer, Sand Feeder and Conveyor, Sand Molding machine and Sand Reclamation Machine.
We also design custom production line of green sand casting prodcution.

Flaskless molding machine don’t need flask.it’s an improved version of sand molding machine,Patterns are moved to the middle and two half iron molds will close.Green sands are injected into molds and hydraulic power of two half molds will compact the sand molds.

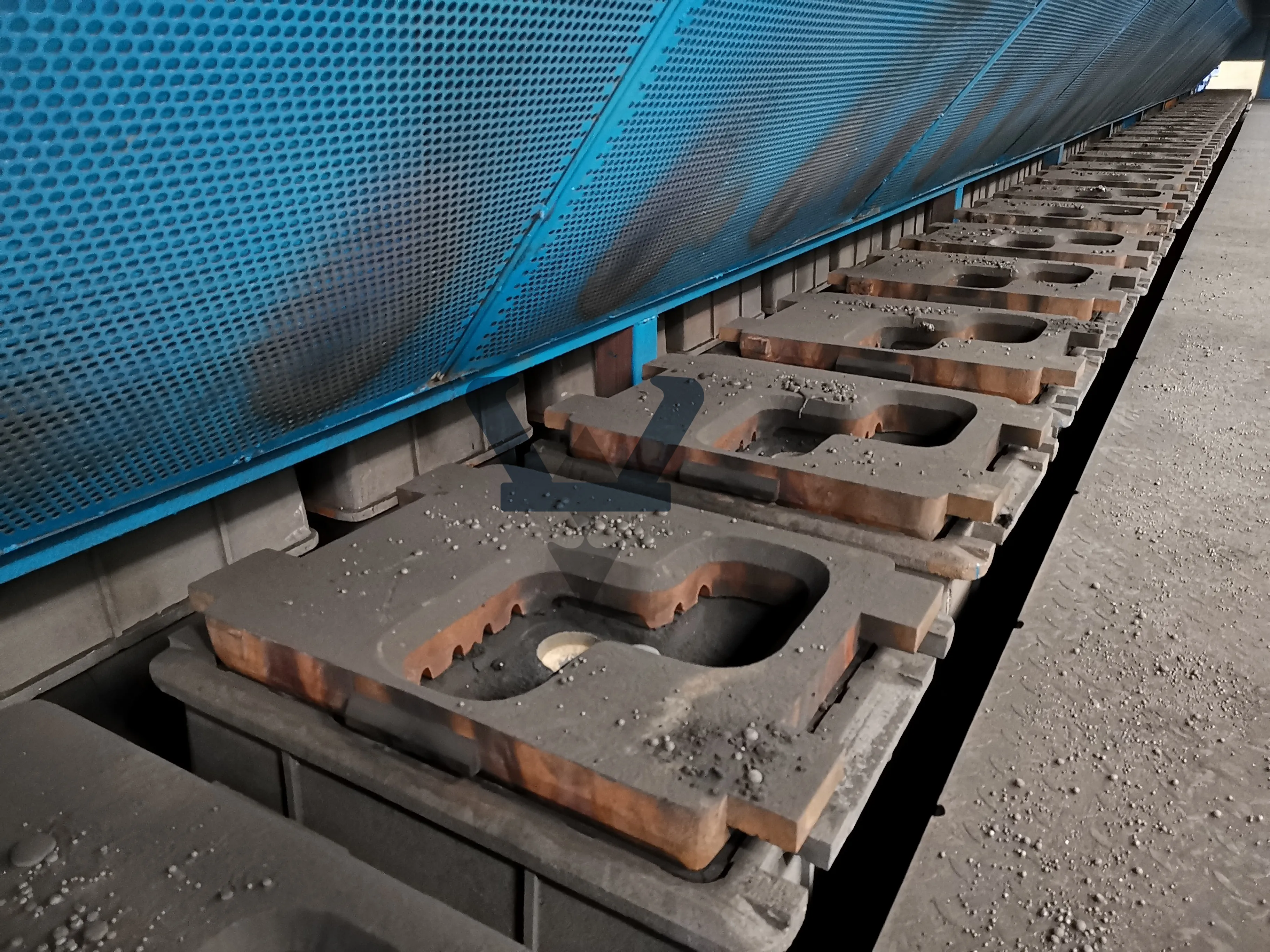

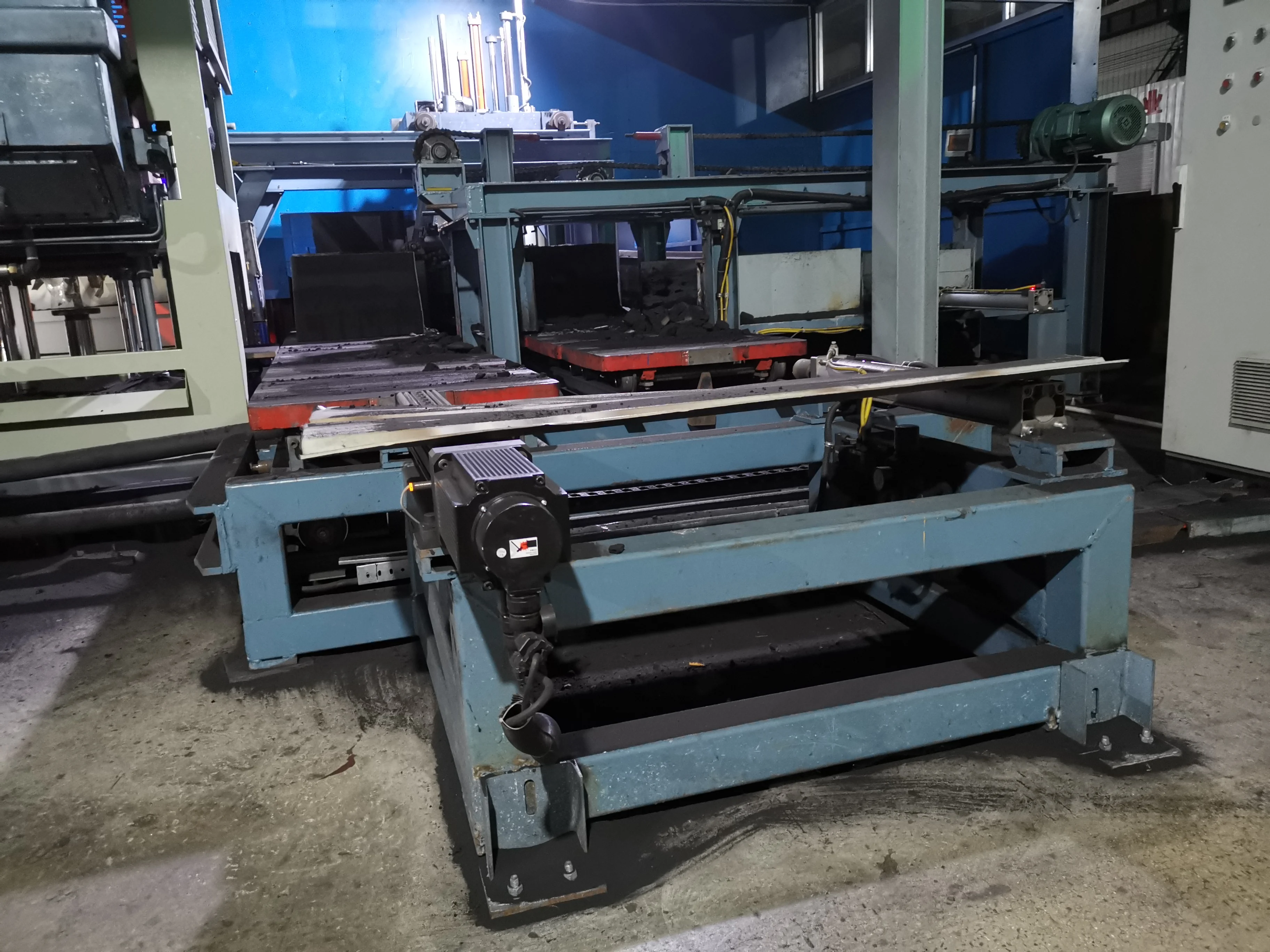

Finished green sand mold will be transferred by trolley automatically. Sometime flask frame is necessary for some casting.
Application of  Foundry sand flaskless molding machine
HZ61 series flaskless molding machine is for automatic mass production of small and medium clay sand castings. Especially for casting weight is below 50kg and without sand core or simple core. Such as machinery parts, auto and motorcycle parts, valves, bearings, cylinder head, flywheel housing and brake caliper, but also pipe fitting, shaft and cover, like T joint, elbow and clampetc . More competitive for those products require inner sand core
Flaskless molding machine has the advantages of light equipment, small footprint, high safety performance, simple modeling, high precision, make low noise.and wide application range.

a. Sand shot up and down, instead of single shot in the back & sand shot in both sides&vertical single way shot

b. Double-station models, not double-box model

c. Accurate mold clamping, box closing accuracy<0.1mm

d. Large core space
e. No nozzle interference during mold clamping and unboxing to avoid sand dropping problems
f. Automatic template heating
g. Forming principle: air-flow sand, hydraulic compaction, h. Max compaction specific pressure: 10kg / cm3
